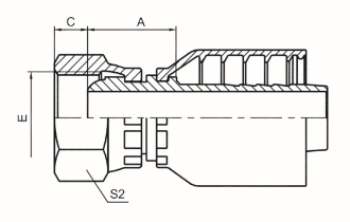

| 代 號 PART NO. | 螺紋E | 膠 管 HOSE BORE | 尺寸 DIMENSIONS | ||||
| 編織 BRAIDED | 纏繞 SPIRAL | THREADE | 公稱內(nèi)徑 DN | 標號DASH | A | C | S2 |
| 20111-10-04RW | -- | M10X1 | 6 | 04 | 20 | 2.5 | 14 |
| 20111-12-04RW | -- | M12X1.5 | 6 | 04 | 20.5 | 4 | 17 |
| 20111-12-05RW | -- | M12X1.5 | 8 | 05 | 20.5 | 4 | 17 |
| 20111-14-04TRW | -- | M14X1.5 | 6 | 04 | 18.5 | 4 | 19 |
| 20111-14-05RW | -- | M14X1.5 | 8 | 05 | 21 | 4.5 | 19 |
| 20111-16-04TRW | -- | M16X1.5 | 6 | 04 | 18.5 | 5 | 22 |
| 20111-16-05TRW | -- | M16X1.5 | 8 | 05 | 18.5 | 5 | 22 |
| 20111-16-06RW | -- | M16X1.5 | 10 | 06 | 21.5 | 4.5 | 22 |
| 20111-18-05TRW | -- | M18X1.5 | 8 | 05 | 20.5 | 4 | 22 |
| 20111-18-06TRW | -- | M18X1.5 | 10 | 06 | 20 | 4 | 22 |
| 20111-18-08RW | 20112-18-08RW | M18X1.5 | 12 | 08 | 24 | 4 | 24 |
| 20111-20-06TRW | -- | M20X1.5 | 10 | 06 | 20.5 | 5.5 | 24 |
| 20111-20-08RW | 20112-20-08RW | M20X1.5 | 12 | 08 | 24.5 | 5.5 | 27 |
| 20111-22-06TRW | 20112-22-06TRW | M22X1.5 | 10 | 06 | 21 | 5 | 27 |
| 20111-22-08TRW | 20112-22-08TRW | M22X1.5 | 12 | 08 | 22 | 5 | 27 |
| 20111-22-10RW | 20112-22-10RW | M22X1.5 | 16 | 10 | 26 | 5 | 27 |
| 20111-24-10RW | 20112-24-10RW | M24X1.5 | 16 | 10 | 27 | 5 | 30 |
| 20111-24-08TRW | 20112-24-08TRW | M24X1.5 | 12 | 08 | 22.5 | 5.5 | 30 |
| 20111-27-08DTRW | 20112-27-08DTRW | M27X1.5 | 12 | 08 | 23.5 | 5.5 | 32 |
| 20111-27-10DTRW | 20112-27-10DTRW | M27X1.5 | 16 | 10 | 24 | 5.5 | 32 |
| 20111-27-12DRW | 20112-27-12DRW | M27X1.5 | 20 | 12 | 27.5 | 5.5 | 32 |
| 20111-27-10TRW | 20112-27-10TRW | M27X2 | 16 | 10 | 24 | 7 | 32 |
| 20111-30-12DTRW | 20112-30-12DTRW | M30X1.5 | 20 | 12 | 23.5 | 6 | 36 |
| 20111-30-12TRW | 20112-30-12TRW | M30X2 | 20 | 12 | 23.5 | 7 | 41 |
| 20111-36-12TRW | 20112-36-12TRW | M36X2 | 20 | 12 | 24.5 | 8 | 41 |
| 20111-39-16TRW | 20112-39-16TRW | M39X2 | 25 | 16 | 29.7 | 7 | 46 |
| 20111-42-16TRW | 20112-42-16TRW | M42X2 | 25 | 16 | 29.7 | 8.5 | 50 |
| 20111-45-20TRW | 20112-45-20TRW | M45X2 | 32 | 20 | 30.2 | 8.5 | 55 |
| 20111-52-20TRW | 20112-52-20TRW | M52X2 | 32 | 20 | 31.7 | 9 | 60 |
| 20111-52-24TRW | 20112-52-24TRW | M52X2 | 40 | 24 | 32.5 | 9 | 60 |
| 20111-64-32TRW | 20112-64-32TRW | M64X2 | 50 | 32 | 38 | 14 | 75 |
注：實際參數(shù)以最新圖冊為準
