90°公制卡套式直管 DIN 2353

在線咨詢
全國服務熱線 :
90°公制卡套式直管 DIN 2353
數據展示

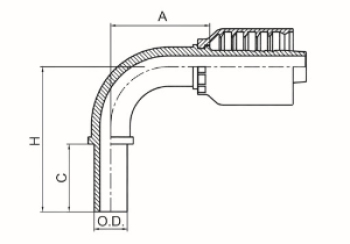

代  號 PART NO. 膠 管 HOSE BORE 管子外徑 尺寸 DIMENSIONS 備注
編織 BRAIDED 纏繞 SPIRAL 公稱內徑 DN 標號DASH TUBE O.D. A    C    H NOTE
50091-06-04RW -- 6 04 6 31.5 22 48 輕 系 列
50091-08-05RW -- 8 05 8 35.5 24 55.5
50091-08-06RW -- 10 06 8 36.8 24 57.5
50091-10-05RW -- 8 05 10 35.5 23 53
50091-10-06RW -- 10 06 10 36.3 23 55.3
50091-12-06RW -- 10 06 12 36.3 23 59.8
50091-12-08RW 50092-12-08RW 12 008 12 41.5 23 67
50091-15-06RW 50092-15-06RW 10 06 15 36.9 25 59.8
50091-15-08RW 50092-15-08RW 12 08 15 41.5 25 65
50091-18-08RW 50092-18-08RW 12 08 18 41.5 26 68.5
50091-18-10RW 50092-18-10RW 16 10 18 58 26 73
50091-22-10RW 50092-22-10RW 16 10 22 58 28 76.5
50091-22-12RW 50092-22-12RW 20 12 22 65.5 28 86
50091-22-16RW 50092-22-16RW 25 16 22 78.9 28 91.5
50091-28-16RW 50092-28-16RW 25 16 28 78.9 30 95.5
50091-35-20RW 50092-35-20RW 32 20 35 92.7 36 112.5
50091-42-24RW 50092-42-24RW 40 24 42 111.5 40 123
50091-08-04RW -- 6 04 8 31.5 24 52.5 重 系 列
50091-08-05RW -- 8 05 8 35.5 24 55.5
50091-08-06RW -- 10 06 8 36.8 24 57.8
50091-10-04RW -- 6 04 10 31.5 26 53
50091-12-04RW -- 6 04 12 31.5 26 57.5
50091-12-05RW -- 8 05 12 34.5 26 60.5
50091-14-06RW -- 10 06 14 36.3 29 63.8
50091-14-08RW 50092-14-08RW 12 08 14 41.5 29 69
50091-14-12RW 50092-14-12RW 20 12 14 66.2 29 83
50091-16-08RW 50092-16-08RW 12 08 16 41.5 30 73
50091-16-10RW 50092-16-10RW 16 10 16 58 30 77.5
50091-20-10RW 50092-20-10RW 16 10 20 58 36 84.5
50091-20-12RW 50092-20-12RW 20 12 20 65.5 36 95.5
50091-25-12RW 50092-25-12RW 20 12 25 65.5 40 98
50091-25-16RW 50092-25-16RW 25 16 25 78.9 40 103.5
50091-30-16RW 50092-30-16RW 25 16 30 80.2 44 109.5
50091-30-20RW 50092-30-20RW 32 20 30 92.7 44 120.5
50091-38-16RW 50092-38-16RW 25 16 38 78.9 50 115.5
50091-38-20RW 50092-38-20RW 32 20 38 92.7 50 126.5


注:實際參數以最新圖冊為準
