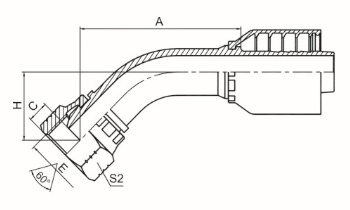

| 代 號 PART NO. | 螺紋E | 膠 管 HOSE BORE | 尺寸 DIMENSIONS | |||||
| 編織 BRAIDED | 纏繞 SPIRAL | THREADE | 公稱內(nèi)徑 DN | 標(biāo)號DASH | A | C | H | S2 |
| 21641-04-04RW | -- | 1/4”X18 | 6 | 04 | 43.8 | 4.6 | 20.2 | 19 |
| 21641-04-06RW | -- | 1/4”X18 | 10 | 06 | 47 | 1.6 | 21.8 | 19 |
| 21641-06-04RW | -- | 3/8”X18 | 6 | 04 | 44.6 | 6 | 21 | 22 |
| 21641-06-05RW | -- | 3/8”X18 | 8 | 05 | 46.7 | 6 | 21.9 | 22 |
| 21641-06-06RW | -- | 3/8”X18 | 10 | 06 | 47.8 | 6 | 22.6 | 22 |
| 21641-08-08RW | 21642-08-08RW | 1/2”X14 | 12 | 08 | 62.5 | 7.5 | 26.1 | 27 |
| 21641-12-10RW | 21642-12-10RW | 3/4”X14 | 16 | 10 | 73.4 | 8.9 | 28.1 | 32 |
| 21641-12-12RW | 21642-12-12RW | 3/4”X14 | 20 | 12 | 76.7 | 8.9 | 30.9 | 32 |
| 21641-16-12TRW | 21642-16-12TRW | 1”X11.5 | 20 | 12 | 75.5 | 10.5 | 29.7 | 41 |
| 21641-16-16RW | 21642-16-16RW | 1”X11.5 | 25 | 16 | 90.2 | 10.5 | 33.8 | 41 |
| 21641-20-20WRW | 21642-20-20WRW | 1.1/4”X11.5 | 32 | 20 | 103.8 | 11.2 | 41.9 | 50 |
| 21641-24-20TRW | 21642-24-20TRW | 1.1/2”X11.5 | 32 | 20 | 99.2 | 11.2 | 37.3 | 55 |
| 21641-24-24WRW | 21642-24-24WRW | 1.1/2”X11.5 | 40 | 24 | 119.2 | 11.2 | 46.5 | 55 |
| 21641-32-32WRW | 21642-32-32WRW | 2”X11.5 | 50 | 32 | 142.5 | 11.2 | 52.7 | 70 |
注：實際參數(shù)以最新圖冊為準(zhǔn)
