應用范圍:
建造和造船業(對于超高壓搶>300Mpa)
工業清洗 加氫氣除垢和出去積累的污垢和物質
對于工作壓力高達280Mpa(40.600psi)
技術規格:
芯管:聚甲醛
壓力加強層:六層最大拉力鋼絲纏繞層
外膠:1.聚酰胺 ;2.聚氨酯,耐磨
標準顏色:1:紅色 ;2.黃色;
溫度范圍:-10°C至+ 70°C
Applications:
Construction and shipbuilding industry(for very high pressure lances with>300Mpa)
Industrial cleaning
Hydrodemolition and removal of accumulated dirt and materials
For working pressure up to 280Mpa(40.600psi)

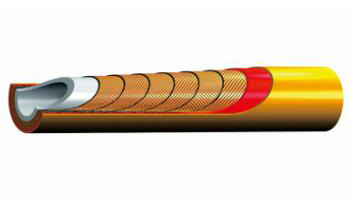

Technical Specifications:
Core tube:Polyoxymethylene:
Pressure reinforcement:
Six spiral layers of maximum tensile steel wire;
Cover:1st:Polyamide;2nd:Polyurethane,abrasion resistant;
Standard color:1st:red;2nd:yellow;
Temperature range:-10°C up to+ 70°C
規格 Specifications | |||||
軟管內徑 mm |
軟管外徑 mm |
最大工作壓力 MAX Rec.WP(PSI) |
最小爆破壓力 Mpa |
Weight 重量 (KG/M) |
|
5/32 | 12 | 300 | 780 | 0.40 | |
3/16 | 13 | 250 | 625 | 0.41 | |
3/8 | 21.6 | 160 | 400 | 0.94 | |
1/2 | 27 | 200 | 500 | 1.85 | |
3/4 | 33.7 | 112 | 280 |
1.76 |
