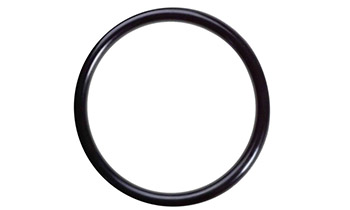

適用于快速接頭的丁腈墊圈
溫度范圍 -40F( -40 ℃) to 250F(+121 ℃);
Buna-N Gasket for Quick-Acting Couplings;
Temperature Rating -40F( -40 ℃) to 250F(+121 ℃);;
部件號 Part Number |
規格(英寸) Size(in.) |
單個重量(公斤) Weight Each(KG) |
標準裝箱數量 Standard Carton |
BUNA075 | 3/4 | 0.0036 | 10 |
BUNA100 | 1 | 0.0045 | 10 |
BUNA125 | 1-1/4 | 0.01 | 10 |
BUNA150 | 1-1/2 | 0.01 | 10 |
BUNA200 | 2 | 0.01 | 10 |
BUNA250 | 2-1/2 | 0.02 | 10 |
BUNA300 | 3 | 0.02 | 10 |
BUNA400 | 4 | 0.03 | 10 |
BUNA500 | 5 | 0.04 | 10 |
BUNA600 | 6 | 0.05 | 10 |
BUNA800 | 8 | 0.10 | 10 |
BUNA801 | 8 | 0.11 | 10 |
BUNA1000 | 10 | 0.18 | 10 |
