用途:
適用于各種動力機械及風動工具在常溫下輸送壓縮空氣、水或惰性氣體。
特性:

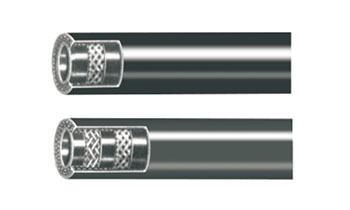

膠管骨架層采用化學纖維編織、纏繞、管體結實耐用,承壓高。外觀為光
面或布紋兩種,顏色有紅色、綠色、藍色和黑色。軟管執行GB1186標準。
DN | Inches | I .D (mm) | O .D(mm) | Max.W.P | Min. B.P | |
Min | Max | (Mpa) | (Mpa) | |||
13 | 1/2 | 12.5 | 14.0 | 23.0 | 1.0 | 4.0 |
16 | 5/8 | 15.5 | 17.0 | 26.0 | 1.0 | 4.0 |
19 | 3/4 | 18.5 | 20.0 | 29.0 | 1.0 | 4.0 |
25 | 1 | 24.5 | 26.0 | 35.0 | 1.0 | 4.0 |
32 | 1 1/4 | 31.5 | 33.0 | 45.0 | 1.0 | 4.0 |
38 | 1 1/2 | 37.5 | 39.0 | 52.0 | 1.0 | 4.0 |
51 | 2 | 50.0 | 52.5 | 66.0 | 1.0 | 4.0 |
13 | 1/2 | 12.5 | 14.0 | 23.0 | 2.0 | 8.0 |
16 | 5/8 | 15.5 | 17.0 | 26.0 | 2.0 | 8.0 |
19 | 3/4 | 18.5 | 20.0 | 29.0 | 2.0 | 8.0 |
25 | 1 | 24.5 | 26.0 | 35.0 | 2.0 | 8.0 |
32 | 1 1/4 | 31.5 | 33.0 | 45.0 | 2.0 | 8.0 |
38 | 1 1/2 | 37.5 | 39.0 | 52.0 | 2.0 | 8.0 |
51 | 2 | 50.0 | 52.5 | 66.0 | 2.0 | 8.0 |
