首頁> 產品展示 > 公制螺紋

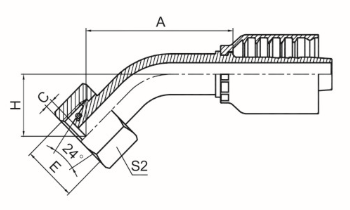

45°公制內螺紋24°錐帶O形圈輕系列 ISO 12151-2 DIN 3865

代  號 PART NO. 螺紋E 膠 管 HOSE BORE 管子外徑 O形圈 尺寸 DIMENSIONS
編織 BRAIDED 纏繞 SPIRAL THREADE 公稱內徑 DN 標號DASH TUBE O.D. O RING A   C    H  S1
20441-12-04WRW -- M12X1.5 6 04 6 O04.5X1.5 46.7 1.4 23.1 17
20441-14-04TRW -- M14X1.5 6 04 8 O06.5X1.5 43.9 1.4 20.3 17
20441-14-06WRW -- M14X1.5 10 06 8 O06.5X1.5 50 1.4 24.8 17
20441-16-04TRW -- M16X1.5 6 04 10 O08.0X1.5 44.3 0.8 20.7 19
20441-16-05TRW -- M16X1.5 8 05 10 O08.0X1.5 46.4 0.8 21.6 19
20441-16-06WRW -- M16X1.5 10 06 10 O08.0X1.5 50.5 2.1 25.3 19
20441-18-05TRW -- M18X1.5 8 05 12 O10.0X1.5 47.7 1.5 22.9 22
20441-18-06TRW -- M18X1.5 10 06 12 O10.0X1.5 48.8 1.5 23.6 22
20441-18-08WRW 20442-18-08WRW M18X1.5 12 08 12 O10.0X1.5 64.4 1.8 28 22
20441-22-05TRW -- M22X1.5 8 05 15 O12.0X2.0 48 3 23.2 27
20441-22-06TRW -- M22X1.5 10 06 15 O12.0X2.0 49.1 3 23.9 27
20441-22-08TRW 20442-22-08TRW M22X1.5 12 08 15 O12.0X2.0 61.8 3 25.4 27
20441-22-10WRW 20442-22-10WRW M22X1.5 16 10 15 O12.0X2.0 74.9 3 29.6 27
20441-26-08TRW 20442-26-08TRW M26X1.5 12 08 18 O15.0X2.0 62.5 2.1 26.1 32
20441-26-10TRW 20442-26-10TRW M26X1.5 16 10 18 O15.0X2.0 72.7 2.1 27.4 32
20441-26-12WRW 20442-26-12WRW M26X1.5 20 12 18 O15.0X2.0 78.8 2.1 33 32
20441-30-10TRW 20442-30-10TRW M30X2 16 10 22 O20.0X2.0 74.6 3.8 29.3 36
20441-30-12TRW 20442-30-12TRW M30X2 20 12 22 O20.0X2.0 77.9 3.8 32.1 36
20441-30-16WRW 20442-30-16WRW M30X2 25 16 22 O20.0X2.0 93 3.8 36.6 36
20441-36-12TRW 20442-36-12TRW M36X2 20 12 28 O26.0X2.0 77.4 4.5 31.6 41
20441-36-16TRW 20442-36-16TRW M36X2 25 16 28 O26.0X2.0 89.6 4.5 33.2 41
20441-36-20WRW 20442-36-20WRW M36X2 32 20 28 O26.0X2.0 102.8 4.5 40.9 41
20441-45-16TRW 20442-45-16TRW M45X2 25 16 35 O32.0X2.5 91.8 4 35.4 50
20441-45-20TRW 20442-45-20TRW M45X2 32 20 35 O32.0X2.5 101.4 4 39.5 50
20441-52-20TRW 20442-52-20TRW M52X2 32 20 42 O38.0X2.5 102.1 4 40.2 60
20441-52-24TRW 20442-52-24TRW M52X2 40 24 42 O38.0X2.5 116.8 4 44.1 60



詳細參數
