首頁> 產品展示 > 公制螺紋

公制卡套式直管 DIN 2353

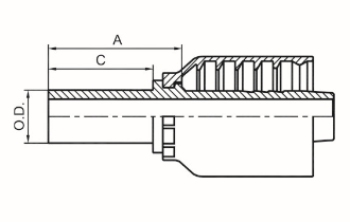

代  號 PART NO. 膠 管 HOSE BORE 管子外徑 尺寸 DIMENSIONS 備注
編織 BRAIDED 纏繞 SPIRAL 公稱內徑 DN 標號DASH TUBE O.D. A   C   NOTE
50011-06-04RW -- 6 04 6 30.5 22

輕

系

列
50011-10-05RW -- 8 05 10 32.5 23
50011-10-06RW -- 10 06 10 33 23
50011-12-06RW -- 10 06 12 34.5 23
50011-12-08RW 50012-12-08RW 12 08 12 33.5 23
50011-15-06RW 50012-15-06RW 10 06 15 36.5 25
50011-15-08RW 50012-15-08RW 12 08 15 16 25
50011-18-08RW 50012-18-08RW 12 08 18 37 26
50011-18-10RW 50012-18-10RW 16 10 18 42.5 26
50011-22-10RW 50012-22-10RW 16 10 22 45.5 28
50011-22-12RW 50012-22-12RW 20 12 22 44 28
50011-22-16RW 50012-22-16RW 25 16 22 48.2 28
50011-28-16RW 50012-28-16RW 25 16 28 49.2 30
50011-35-20RW 50012-35-20RW 32 20 35 57.2 36
50011-42-24RW 50012-42-24RW 40 24 42 64 40
50011-08-04RW -- 6 04 8 32.5 24

重

系

列
50011-08-05RW -- 8 05 8 34.5 24
50011-08-06RW -- 10 06 8 34 24
50011-10-04RW -- 6 04 10 36.5 26
50011-12-04RW -- 6 04 12 36 26
50011-12-05RW -- 8 05 12 37 26
50011-14-06RW -- 10 06 14 40.5 29
50011-14-08RW 50012-14-08RW 12 08 14 40.5 29
50011-14-12RW 50012-14-12RW 20 12 14 45.5 29
50011-16-08RW 50012-16-08RW 12 08 16 41.5 30
50011-16-10RW 50012-16-10RW 16 10 16 47 30
50011-20-10RW 50012-20-10RW 16 10 20 54 36
50011-20-12RW 50012-20-12RW 20 12 20 52.5 36
50011-25-12RW 50012-25-12RW 20 12 25 56 40
50011-25-16RW 50012-25-16RW 25 16 25 59.2 40
50011-30-16RW 50012-30-16RW 25 16 30 65.2 44
50011-30-20RW 50012-30-20RW 32 20 30 65.2 44
50011-38-16RW 50012-38-16RW 25 16 38 71.2 50
50011-38-20RW 50012-38-20RW 32 20 38 72 50
