首頁> 產(chǎn)品展示 > 英制螺紋

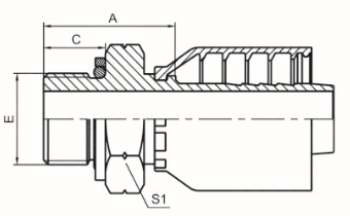

英管外螺紋O形圈密封

代  號 PART NO. 螺紋E 膠 管 HOSE BORE O形圈 尺寸 DIMENSIONS
編織 BRAIDED 纏繞 SPIRAL THREADE 公稱內(nèi)徑 DN 標號DASH O RING A C  S1
12211-04-04RW -- G1/4”X19 6 04 O111 23 11 19
12211-04-06RW -- G1/4”X19 10 06 O111 22.5 11 19
12211-06-06RW -- G3/8”X19 10 06 O113 25.5 12 22
12211-08-04RW -- G1/2”X14 6 04 O115 30 14 27
12211-08-06RW -- G1/2”X14 10 06 O115 29.5 14 27
12211-08-08RW 12212-08-08RW G1/2”X14 12 08 O115 30.5 14 27
12211-10-10RW 12212-10-10RW G5/8”X14 16 10 O910 32.5 15.5 30
12211-12-10RW 12212-12-10RW G3/4”X14 16 10 O119 33.5 15.5 32
12211-12-12RW 12212-12-12RW G3/4”X14 20 12 O119 32.5 15.5 32
12211-12-16RW 12212-12-16RW G3/4”X14 25 16 O119 35.7 15.5 32
12211-16-16RW 12212-16-16RW G1”X11 25 16 O217 40.7 18.5 41
12211-20-20RW 12212-20-20RW G1.1/4”X11 32 20 O222 44.2 20 50
