首頁> 產品展示 > 英制螺紋

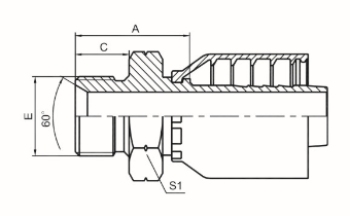

英管外螺紋60°內錐面或六角端面組合墊密封的雙用接頭

產品標簽
代  號 PART NO. 螺紋E 膠 管 HOSE BORE 尺寸 DIMENSIONS
編織 BRAIDED 纏繞 SPIRAL THREADE 公稱內徑 DN 標號DASH A C  S1
12611A-02-04RW -- G1/8”X28 6 04 22 10 14
12611A-04-04RW -- G1/4”X28 6 04 24 12 19
12611A-04-05RW -- G1/4”X28 8 05 24 12 19
12611A-04-06RW -- G1/4”X28 10 06 23.5 12 19
12611A-06-04RW -- G3/8”X19 6 04 27.5 13.5 22
12611A-06-05RW -- G3/8”X19 8 05 27.5 13.5 22
12611A-06-06RW -- G3/8”X19 10 06 27 13.5 22
12611A-06-08RW 12612A-06-08RW G3/8”X19 12 08 28 13.5 22
12611A-08-06RW -- G1/2”X14 10 06 31.5 16 27
12611A-08-08RW 12612A-08-08RW G1/2”X14 12 08 32.5 16 27
12611A-08-10RW 12612A-08-10RW G1/2”X14 10 06 31.5 16 27
12611A-08-12RW 12612A-08-12RW G1/2”X14 20 12 32 16 27
12611A-12-08RW 12612A-12-08RW G3/4”X14 12 08 36 18.5 32
12611A-12-10RW 12612A-12-10RW G3/4”X14 16 10 36.5 18.5 32
12611A-12-12RW 12612A-12-12RW G3/4”X14 20 12 35.5 18.5 32
12611A-12-16RW 12612A-12-16RW G3/4”X14 25 16 38.7 18.5 32
12611A-16-12RW 12612A-16-12RW G1”X11 20 12 39.5 20.5 41
12611A-16-16RW 12612A-16-16RW G1”X11 25 16 42.7 20.5 41
12611A-20-20RW 12612A-20-20RW G1.1/4”X11 32 20 44.7 20.5 50
12611A-24-24RW 12612A-24-24RW G1.1/2”X11 40 24 48 23 55
12611A-32-24RW 12612A-32-24RW G2”X11 40 24 52.5 25.5 70
12611A-32-32RW 12612A-32-32RW G2”X11 50 32 56 25.5 70
