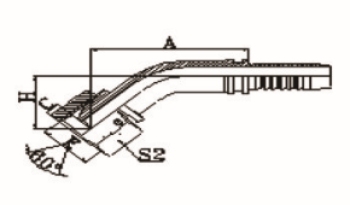

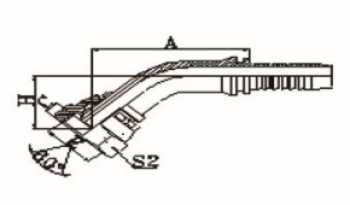

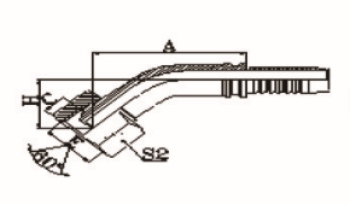

45°英管內(nèi)螺紋60°外錐面

產(chǎn)品標簽

代號	管子外徑D	軟管		尺寸
代號	管子外徑D	公稱內(nèi)徑	標號	A	C	H	S2
22641-04-04	G1/4”X19	6	04	40	5.5	21	19
22641-06-04	G3/8”X19	6	04	43.2	6.3	21	22
22641-06-05	G3/8”X19	8	05	45.3	6.3	22	22
22641-06-06	G3/8”X19	10	06	47	6.3	24	22
22641-08-06T	G1/2”X14	10	06	48.1	7.5	23.9	27
22641-08-08	G1/2”X14	12	08	59.5	7.5	27	27
22641-10-08	G5/8”X14	12	08	61.4	9.5	26.5	30
22641-10-10	G5/8”X14	16	10	63	9.5	29	30
22641-12-08T	G3/4”X14	12	08	61.8	10.9	26.9	32
22641-12-10	G3/4”X14	16	10	63	10.9	29	32
22641-12-12	G3/4”X14	20	12	75.5	10.9	32	32
22641-16-12T	G1”X11	20	12	80.8	11.7	33.4	41
22641-16-16	G1”X11	25	16	86	11.7	34	41
22641-20-16T	G1.1/4”X11	25	16	85.3	11	31.1	50
22641-20-20W	G1.1/4”X11	32	20	98.8	11	38	50
22641-24-24W	G1.1/2”X11	40	24	116.8	13	45.5	55
22641-32-32W	G/2”X11	50	32	135.7	16	52.7	70
注：1.上訴代號用于編制軟管。 2.如需用于纏繞軟管代碼號改為22642-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES 2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 22642-XX-XX.
