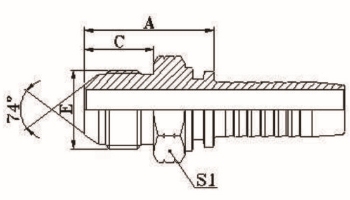

美制JIC外螺紋74°外錐面

產(chǎn)品標(biāo)簽

代號	螺紋E	軟管		尺寸
代號	螺紋E	公稱內(nèi)徑	標(biāo) 號	A	C	S1
16711-04-03	7/16”X20	5	03	26	14	12
16711-04-04	7/16”X20	6	04	26	14	12
16711-05-04	1/2”X20	6	04	26	14	14
16711-05-05	1/2”X20	8	05	26	14	14
16711-05-06	1/2”X20	10	06	26.5	14	17
16711-06-04	9/16”X18	6	04	26.5	14.1	17
16711-06-05	9/16”X18	8	05	26.5	14.1	17
16711-06-06	9/16”X18	10	06	26.5	14.1	17
16711-08-06	3/4”X16	10	06	30.7	16.7	22
16711-08-08	3/4”X16	12	08	31.2	16.7	22
16711-10-06	7/8”X14	10	06	34.3	19.3	24
16711-10-08	7/8”X14	12	08	34	19.3	24
16711-10-10	7/8”X14	16	10	35.8	19.3	24
16711-12-08	1.1/16”X12	12	08	38.5	21.9	30
16711-12-10	1.1/16”X12	16	10	39.4	21.9	30
16711-12-12	1.1/16”X12	20	12	39.4	21.9	30
16711-12-16	1.1/16”X12	25	16	42	21.9	30
16711-14-10	1.3/16”X12	16	10	41.5	22.6	32
16711-14-12	1.3/16”X12	20	12	40.5	22.6	32
16711-16-12	1.5/16”X12	20	12	43.6	23.1	36
16711-16-16	1.5/16”X12	25	16	45.1	23.1	36
16711-20-16	1.5/8”X12	25	16	47	24.3	46
16711-20-20	1.5/8”X12	32	20	48.3	24.3	46
16711-24-20	1.7/8”X12	32	20	53	27.5	50
16711-24-24	1.7/8”X12	40	24	53.5	27.5	50
16711-32-32	2.1/2”X12	50	32	62.9	33.9	60
注：1.上訴代號用于編制軟管。 2.如需用于纏繞軟管代碼號改為16712-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES 2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 16712-XX-XX.
