首頁> 產品展示 > 美制螺紋

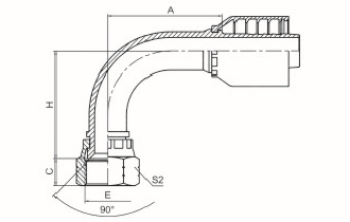

90°美制SAE內螺紋90°內錐面 SAE J513

代  號 PART NO. 螺紋E 膠 管 HOSE BORE 尺寸 DIMENSIONS
編織 BRAIDED 纏繞 SPIRAL THREADE 公稱內徑 DN 標號DASH A C H  S2
27891-04-04RW -- 7/16”X20 6 04 31.5 9 33.5 15
27891-05-05RW -- 1/2”X20 8 05 34.5 9.5 37 17
27891-06-04RW -- 5/8”X18 6 04 31.5 11.3 35.5 22
27891-06-05RW -- 5/8”X18 8 05 34.5 11.3 38.5 22
27891-06-06RW 27892-08-08RW 5/8”X18 10 06 36.3 11.3 40.8 22
27891-08-08RW 27892-10-08RW 3/4”X16 12 08 42.5 11 47.5 24
27891-10-08RW 27892-10-10RW 7/8”X14 12 08 42.5 13 48 27
27891-10-10RW 27892-12-12RW 7/8”X14 16 10 57 13 52.5 27
27891-12-12RW 27892-16-16RW 1.1/16”X14 20 12 63.2 14.3 60.5 32



詳細參數
