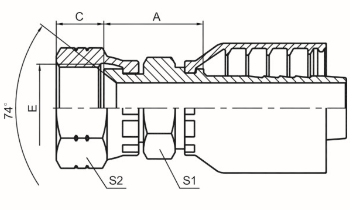

美制JIC內螺紋74°內錐面雙六角 SAE J514

代  號 PART NO. 螺紋E 膠 管 HOSE BORE 尺寸 DIMENSIONS
編織 BRAIDED 纏繞 SPIRAL THREADE 公稱內徑 DN 標號DASH A C  S1   S2
26711D-04-04SMRW -- 7/16”X20 6 04 20 9 12 15
26711D-05-05SMRW -- 1/2”X20 8 05 20.5 9.5 14 17
26711D-06-06SMRW -- 9/16”X18 10 06 20 10.5 17 19
26711D-08-08SMRW 26712D-08-08SMRW 3/4”X16 12 08 25 11 22 24
26711D-10-08SMRW 26712D-10-08SMRW 7/8”X14 12 08 25.5 13 22 27
26711D-10-10SMRW 26712D-10-10SMRW 7/8”X14 16 10 26 13 22 27
26711D-12-12SMRW 26712D-12-12SMRW 1.1/16”X12 20 12 28.5 15 27 32
26711D-16-16SMRW 26712D-16-16SMRW 1.5/16”X12 25 16 32.7 16 32 41
26711D-20-20W/SMRW 26712D-20-20W/SMRW 1.5/8”X12 32 20 39.2 17 41 50
26711D-24-24W/SMRW 26712D-24-24W/SMRW 1.7/8”X12 40 24 41 20 46 55
26711D-32-32W/SMRW 26712D-32-32W/SMRW 2.1/2”X12 50 32 49 23.5 65 75
