首頁> 產品展示 > 美制螺紋

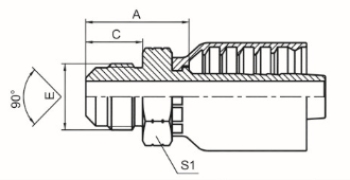

美制SAE外螺紋90°外錐面 SAE J513

產品標簽
代  號 PART NO. 螺紋E 膠 管 HOSE BORE 尺寸 DIMENSIONS
編織 BRAIDED 纏繞 SPIRAL THREADE 公稱內徑 DN 標號DASH A C  S1
17811-04-04RW -- 7/16”X20 6 04 24.7 12.7 12
17811-05-05RW -- 1/2”X20 8 05 26.2 14.2 14
17811-06-04RW -- 5/8”X18 6 04 27.7 15.7 17
17811-06-05RW -- 5/8”X18 8 05 27.7 15.7 17
17811-06-06RW 17812-08-08RW 5/8”X18 10 06 27.2 15.7 17
17811-08-08RW 17812-10-08RW 3/4”X16 12 08 33.5 19 22
17811-10-08RW 17812-10-10RW 7/8”X14 12 08 36.9 22.4 24
17811-10-10RW 17812-12-12RW 7/8”X14 16 10 37.4 22.4 24
17811-12-12RW 17812-16-16RW 1.1/16”X14 20 12 41.4 25.4 30



詳細參數
